SPECIFICATIONS

Application: Electrical wire conductor

Apply: Distribution Cabinet

Brand Name: WONKEDQ

Certification: CE,RoHS

Conductor Size: 24-12 AWG, 24-12 AWG

Connection method: Screw connection

Cross section soft cable: 0.2-2.5mm2

Cross section solid cable: 0.2-4mm2

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Material: Nylon PA66

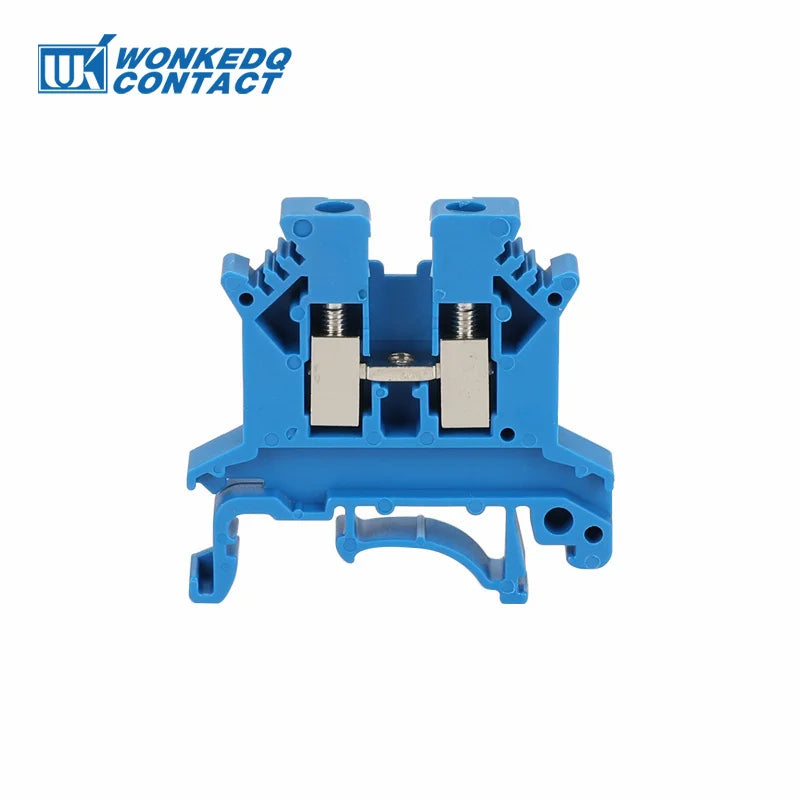

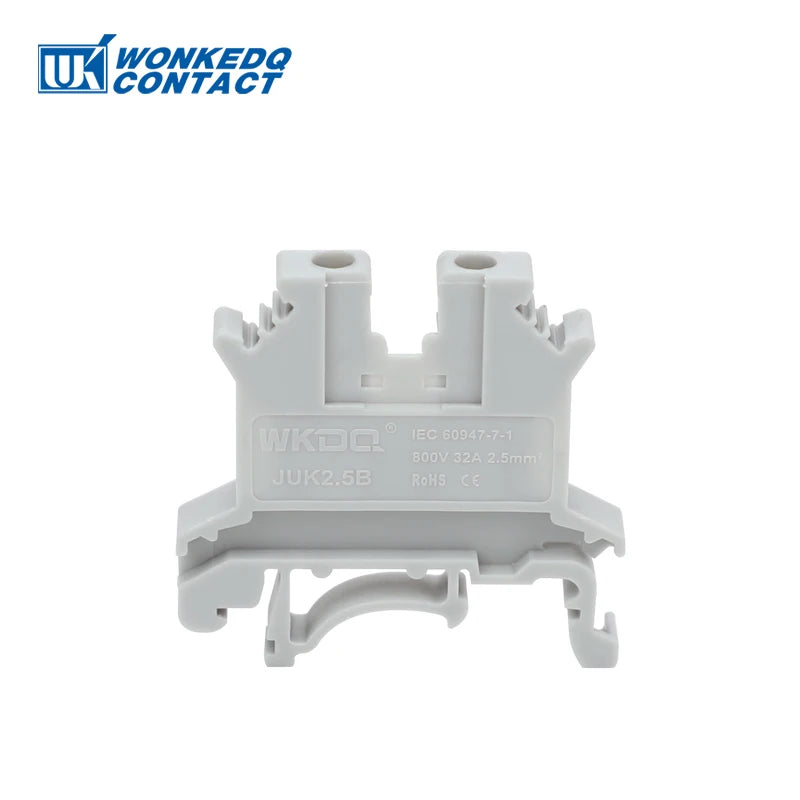

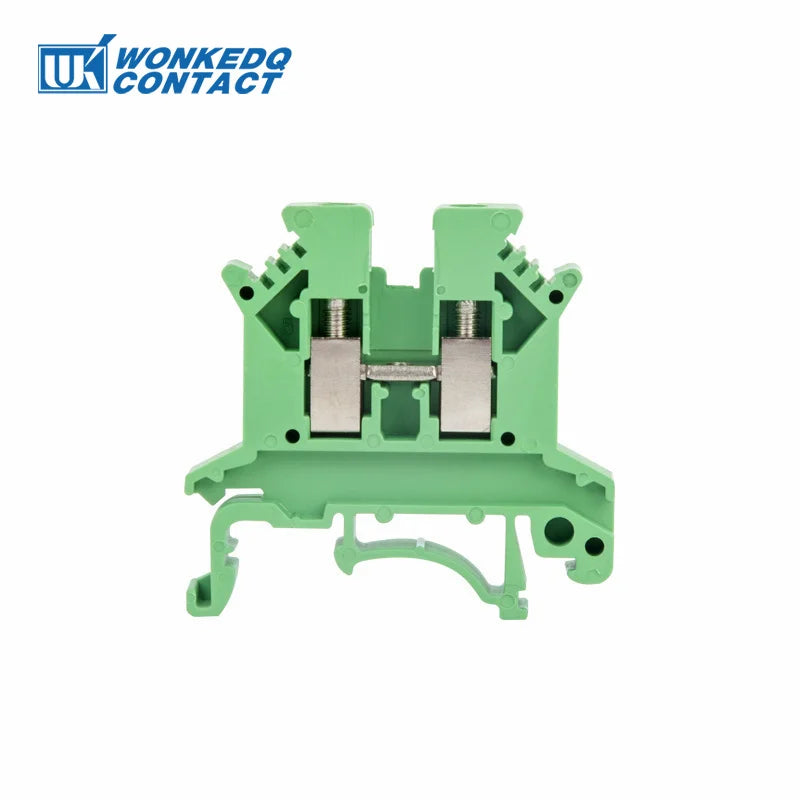

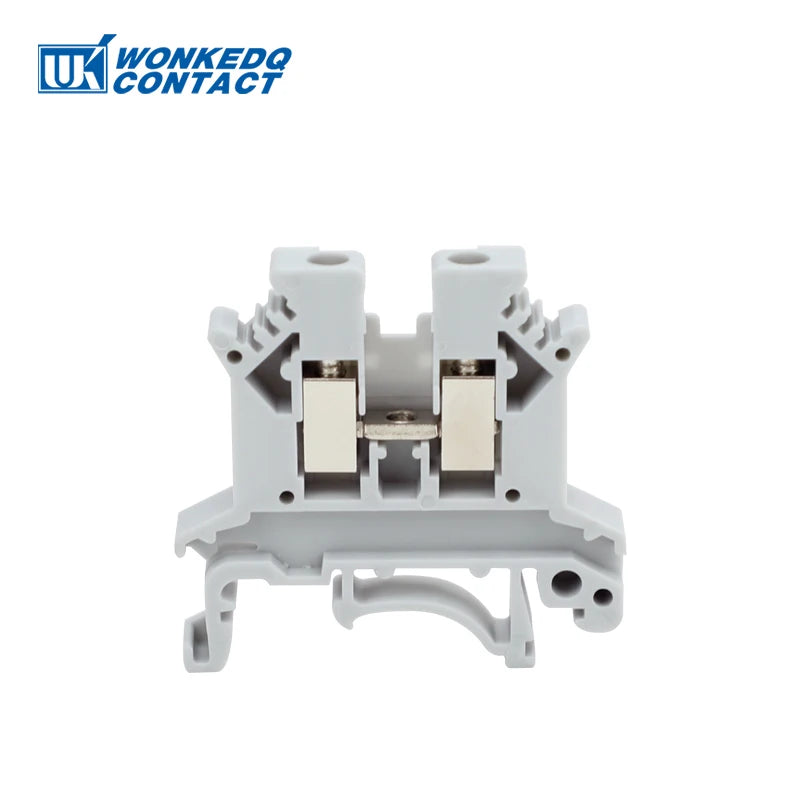

Model: UK 2.5B, UK 2.5, UK2.5

Model Number: UK2.5B UK2.5

Mounting Type: Din Rail

Number of Contacts: 1 - 10

Origin: Mainland China

Rated Voltage/Current: 800V/32A

Size L/H/W: 42.5/41/6.2

Standard: IEC 60947-7-1

Type: Screw Terminal

Usage: Distribution Panel

is_customized: Yes

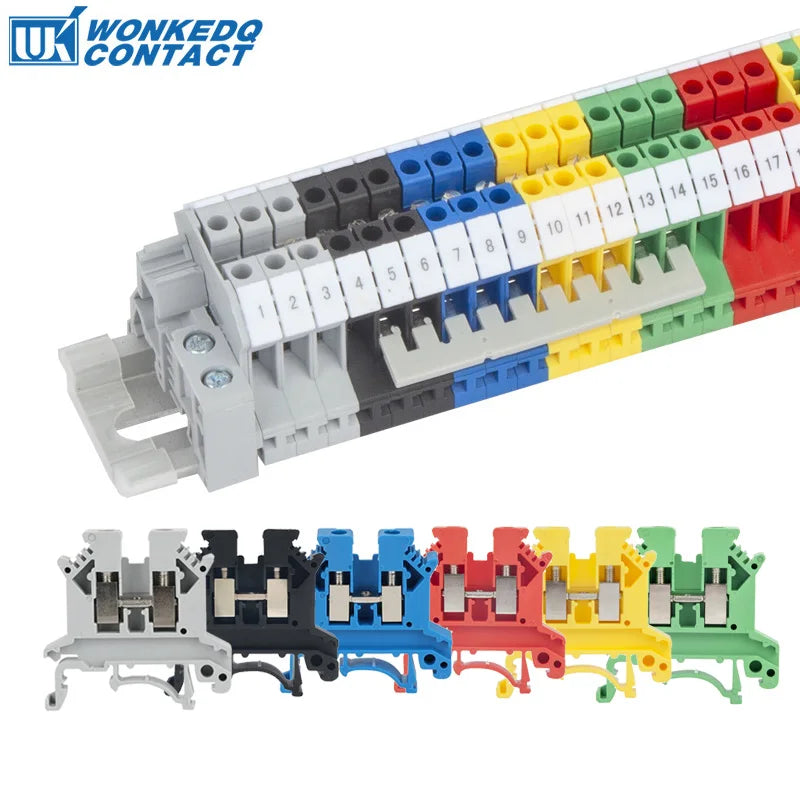

item: Terminal block strips

ACCESSORIES ( Click the pictures to the links)

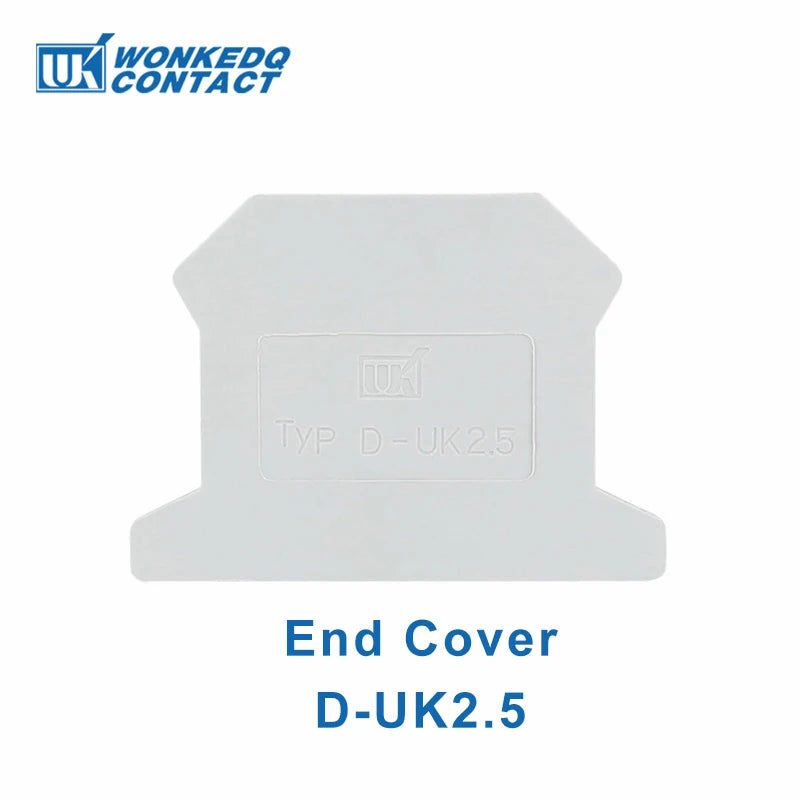

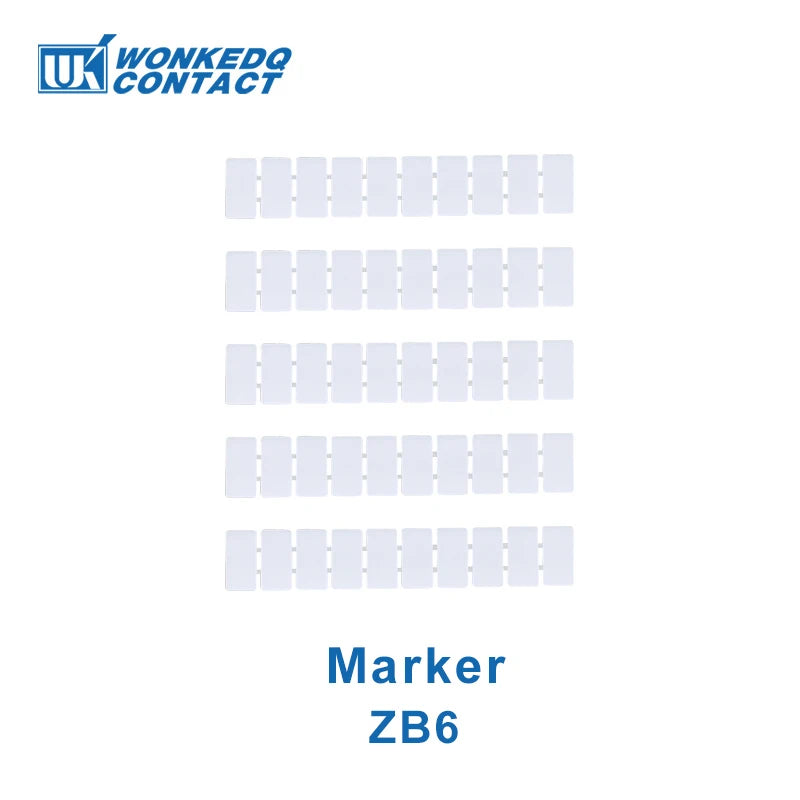

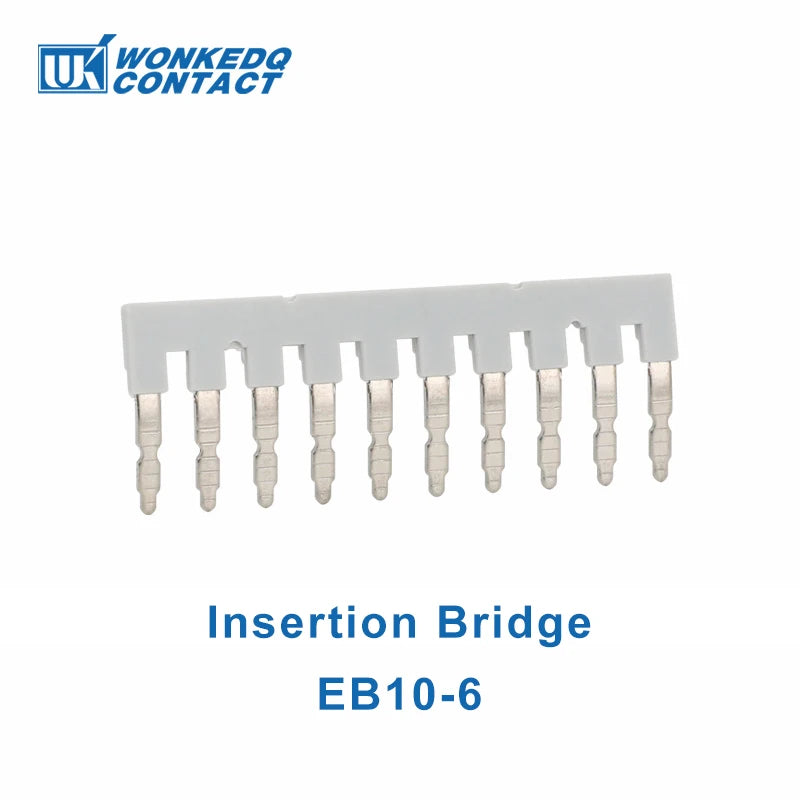

END COVER D-UK 2.5	FIXED  BRIDGE FBI 10-6	PLUG-IN BRIDGE EB10-6	MARKER STRIPS ZB6
MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	END STOP E-UK

Type No.	Size	Click The Pictures To Buy
UK3N	800V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L42.5/H46.2/W5.2 mm
UK5N	800V/41A 0.2-6mm⊃2;/0.2-4mm⊃2; L42.5/H46.2/W6.2 mm
UK10N	800V/76A 0.5-16mm⊃2;/0.5-10mm⊃2; L42.5/H46.2/W10.2 mm
DIKD1.5	250V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L73/H54.5/W6.2 mm
UDK-4	690V/32A 0.2-4mm⊃2;/0.2-4mm⊃2; L64/H46.2/W6.2 mm



Type No.	Details	Accessories
UK 2.5B	800V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L42.5/H41/W6.2 mm	End cover: D-UK 2.5

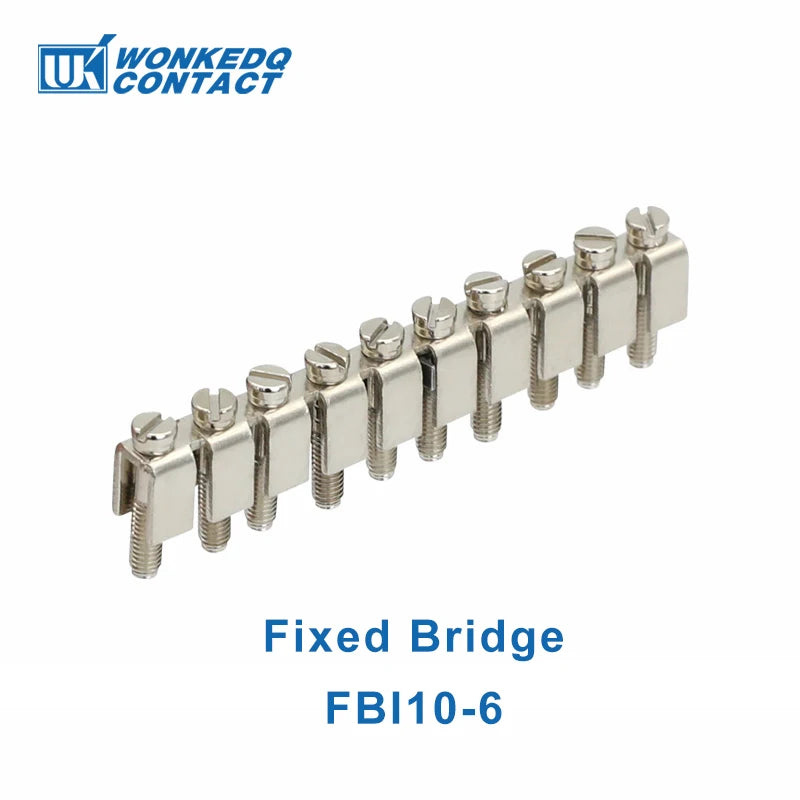

		Fixed bridge: FBI 10-6
		Insertion bridge: EB 10-6
		Marker strip: ZB6



TECHNICAL PARAMETERS

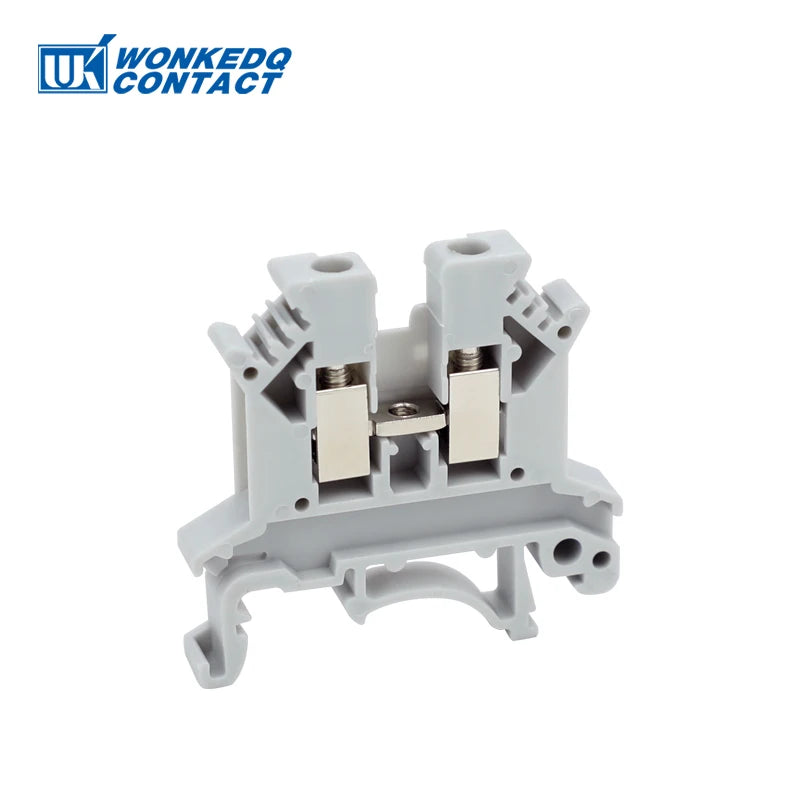

Model Number	UK 2.5B

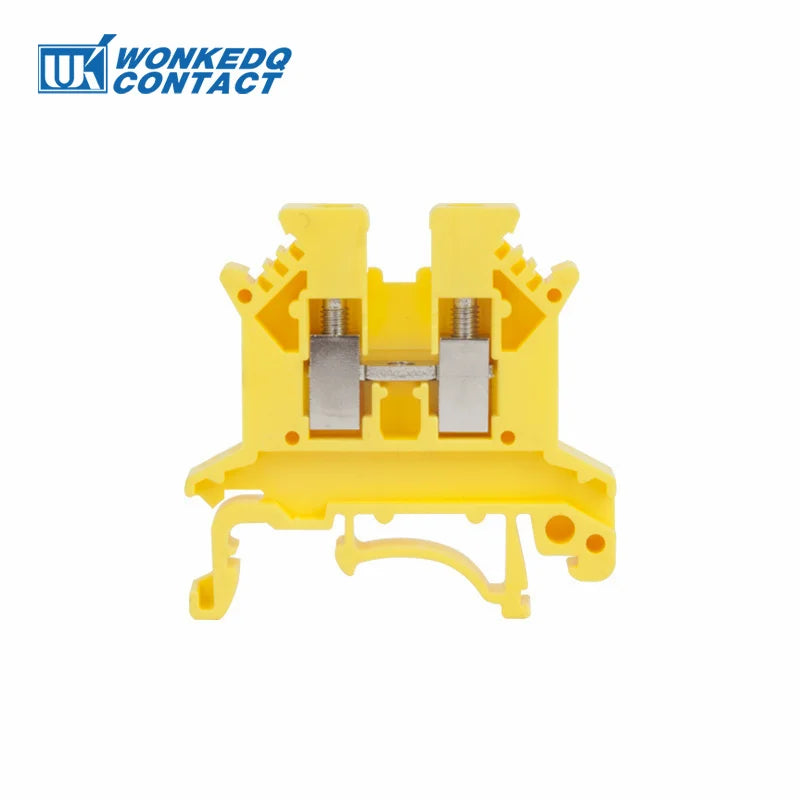

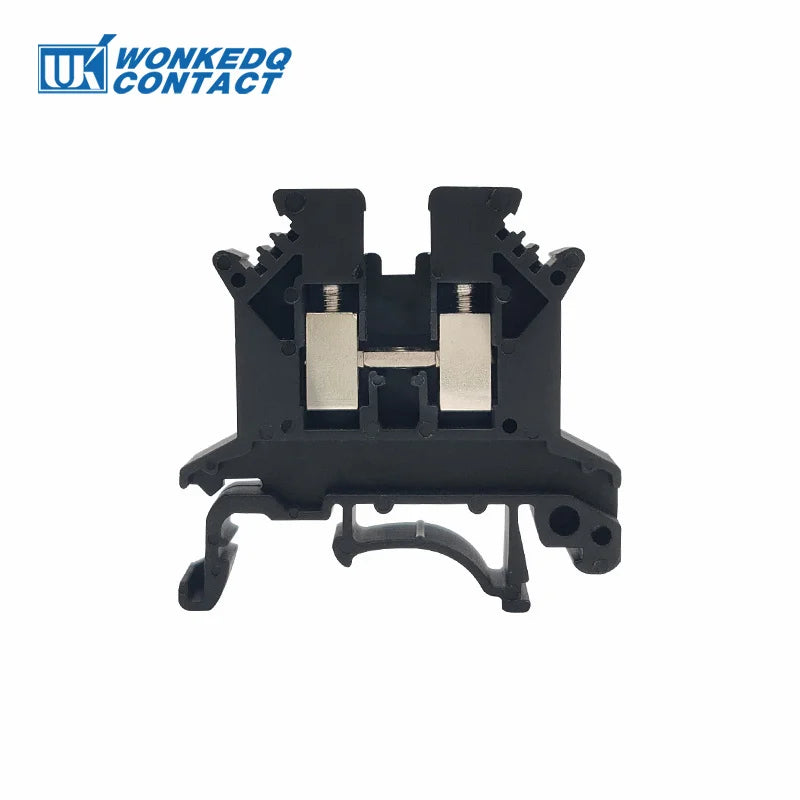

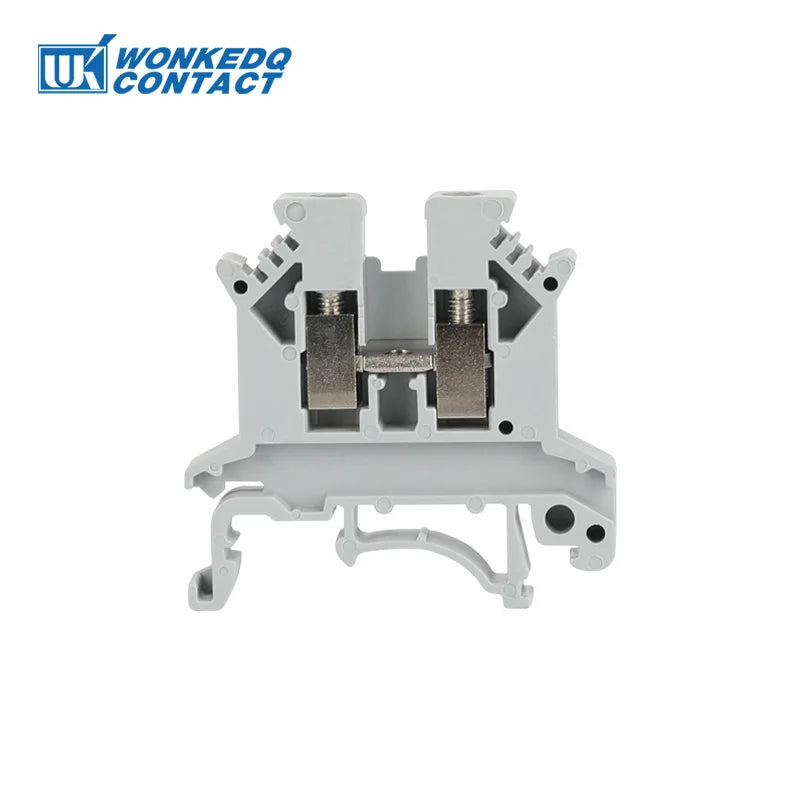

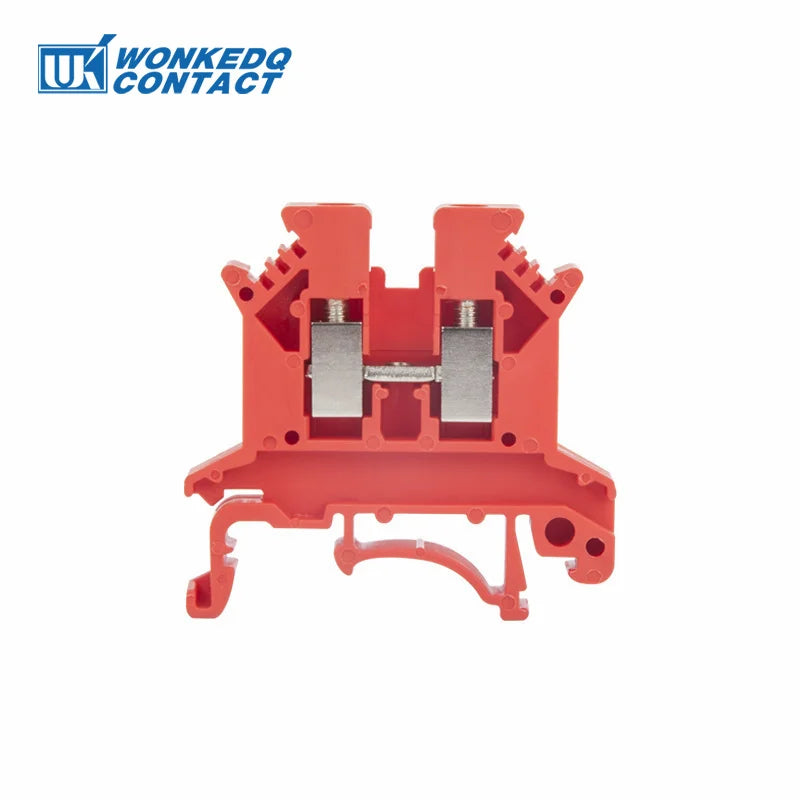

Color	Grey, Blue, other color can be customized

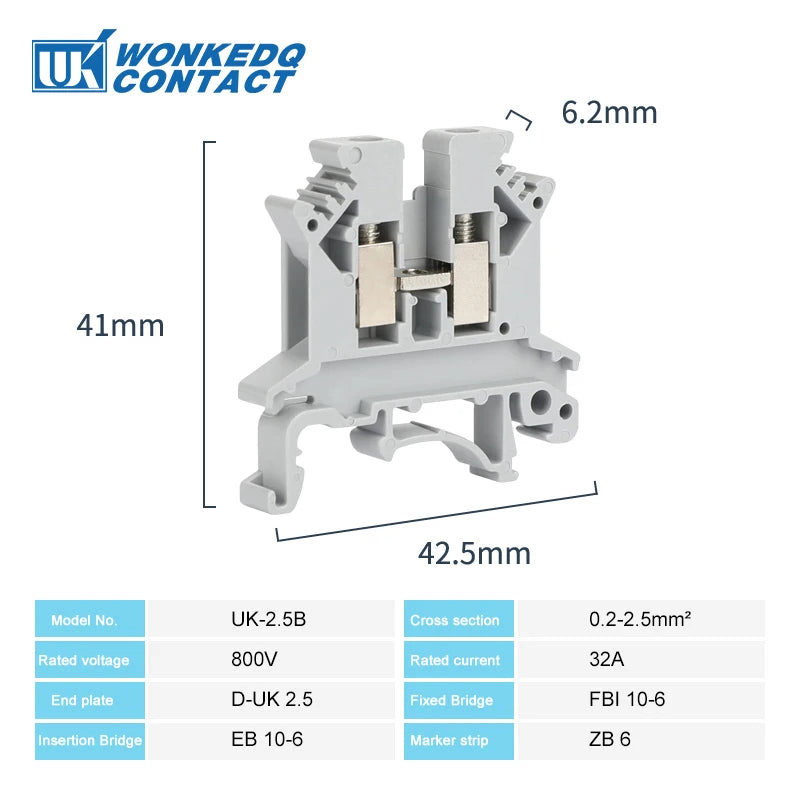

Length/Height/Wide (mm)	42.5/41/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm2/ 0.2-2.5 mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoS/CQC/ISO 9001
